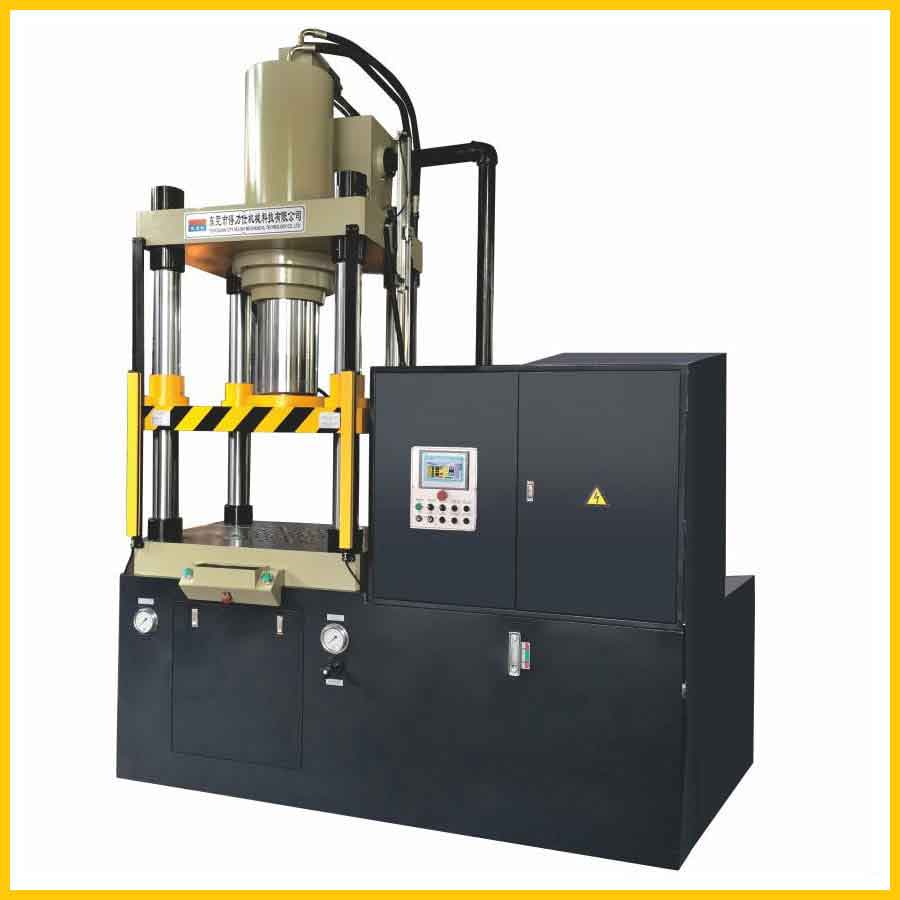

Four Column Double Action Deep Drawing Hydraulic Press
Main Specifications Of Four Column Deep Drawing Hydraulic Press DSFS
Model | Units | Specificatons | ||||||||||
DSFS-50 | DSFS-120 | DSFS-220 | DSFS-220L | DSFS- 275 |
DSFS- 350 |
DSFS-350L | DSFS- 500 |
DSFS-500L | DSFS- 600 |
|||
Main cylinder |
Rated capacity | Ton | 35 | 85 | 160 | 160 | 200 | 260 | 260 | 350 | 350 | 420 |
Max.stroke | mm | 350 | 450 | 560 | 560 | 560 | 560 | 560 | 600 | 600 | 700 | |
Blank holding cylinder |
Rated capacity | Ton | 15 | 35 | 60 | 60 | 75 | 90 | 90 | 150 | 150 | 180 |
Max.stroke | mm | 175 | 200 | 260 | 260 | 260 | 260 | 260 | 300 | 300 | 350 | |
Knocking out ejector |
Rated capacity | Ton | 2 | 3 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 |
Max.stroke | mm | 150 | 180 | 200 | 200 | 200 | 220 | 220 | 250 | 250 | 300 | |
Open height | mm | 600 | 730 | 900 | 1000 | 900 | 900 | 900 | 1000 | 1200 | 1500 | |
Height of fixed working table | mm | 990 | 1055 | 1080 | 1100 | 1100 | 1200 | 1200 | 1550 | 1600 | 1700 | |
Approaching speed of M.W.T. | mm/s | 195 | 220 | 210 | 210 | 210 | 200 | 200 | 210 | 210 | 190 | |
Drawing speed of M.W.T. | mm/s | 25 | 20 | 20 | 20 | 19 | 17 | 17 | 18 | 18 | 14 | |
Returning speed of M.W.T. | mm/s | 180 | 220 | 200 | 200 | 200 | 165 | 165 | 190 | 190 | 180 | |
Ascending speed of blank holding cylinder | mm/s | 120 | 50 | 120 | 120 | 115 | 160 | 160 | 85 | 85 | 75 | |
Working table size available | (L-R) | mm | 500 | 500 | 710 | 900 | 800 | 900 | 1100 | 1050 | 1250 | 1400 |
(F-B) | mm | 550 | 600 | 870 | 1100 | 900 | 1000 | 1250 | 1200 | 1500 | 1600 | |
Overa ll dimension | (L-R) | mm | 1350 | 1420 | 2090 | 2280 | 2190 | 2200 | 2400 | 2970 | 3090 | 3690 |
(F-B) | mm | 1530 | 1680 | 1500 | 1750 | 1650 | 1850 | 1850 | 2200 | 2400 | 2000 | |
(H) | mm | 2680 | 3100 | 3350 | 3500 | 3600 | 3800 | 3840 | 4680 | 4800 | 5640 | |
Motor power | kw | 8.6 | 16 | 30 | 30 | 30 | 37 | 37 | 55 | 55 | 55 | |
Weight(Approx) | kg | 2280 | 3500 | 6000 | 6600 | 7500 | 9500 | 12500 | 16000 | 22000 | 23000 |
Application Of Four Column Deep Drawing Hydraulic Press

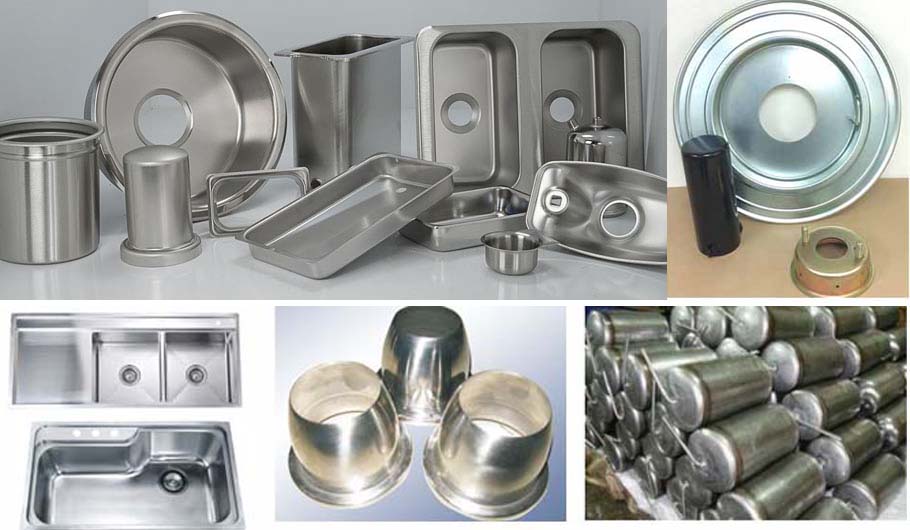

Our four column deep drawing hydraulic press mainly application in tableware,kitchenware and other metal products,deep drawing molding.
