    Gib Guided Hydraulic Press

    Introduction：
    Gib Guided Hydraulic Cold Forging Press
    Gib guided slides maintain parallelism under severe loading conditions
    Adjustable self-lubricated bearings

    GET A QUOTE

    Gib-Guided Hydraulic Cold Forging Machine

    Gib guided hydraulic press designs are the frame style of choice for the most demanding applications. Gibs are press components that guide the reciprocating motion of the ram to maintain superior squareness and parallelism throughout the stroke.
    Gib-Guided Hydraulic Cold Forging Machine
    Guided slide with 8- point gibbing. Adjustable self-lubricated bearings.
    Dual Palm Button control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
    PLC press control is flexible and safe. PLC controls allow for customized press cycles.
    The press table is removable, making it quick and easy to drill and tap tool-mounting holes or resurface the table.

    Main Specifications Of Gib-Guided Hydraulic Cold Forging Machine DKHS

    Model Units
    DKHS-500 DKHS-650 DKHS-800 DKHS-1000 DKHS-1200 DKHS-1500
    Master
    cylinder    		 Capacity ton 500 650 800 1000 1200 1500
    Stroke mm 500 500 500 500 500 400
    Fast down speed mm/s 230 170 190 210 190 220
    Press speed mm/s 8-16 5-12 5-12 8-16 6-15 3-13
    Return speed mm/s 200 170 180 210 160 210
    System pressure bar 250 248 240 240 250 240
    Ejector cyinder Capacity ton 40 50 50 60 80 100
    Stroke mm 250 250 250 250 250 200
    Dia of ejector bar mm 60 80 80 80 80 100
    Open heigh(slide to bolster) mm 800 900 1000 1100 1200 1050
    Working
    table size    		 L-R mm 800 1000 1000 1200 1300 1400
    F-B mm 800 1000 1100 1200 1300 1400
    Motor power KW 34.6 37 60 74 90 110
    Machine size L-R mm 2650 2940 3000 3660 3800 4150
    F-B mm 2100 2100 2300 2450 2500 2680
    H mm 4050 4100 4320 4560 4720 4820

    Applications Of Gib-guide Hydraulic Press Machine

    Our gib-guide hydraulic press machine mainly application in metal materials cold forging and extrusion, and punching mark,light streching,cut edges and other materials.Such as cars, motorcycle, bicycles, cell phone case, LED heat sink, watchcase, hardware tools. Especially suitable for the precision molding parts.

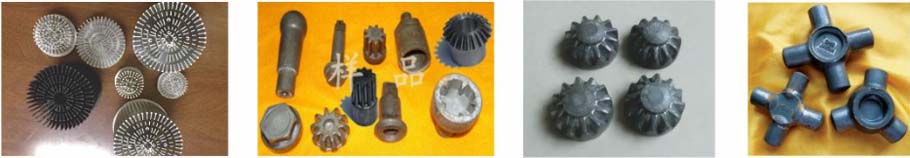

    gid guiderd hydraulic press machine samples
