Adjustment: Press the corresponding function button, there will be a corresponding action, and it will stop when you lift your hand. It is mainly used for equipment adjustment and inspection.
Manual: Press the corresponding function button to complete an action, raise the hand to continue to the end, but do not send a message to proceed to the next action.
Semi-automatic: Press the pressing button to automatically complete a prescribed action cycle.
The technological action of the equipment: two types: no ejection and ejection. Selected by the changeover switch on the operation panel. When used as an ejection process, it has an ejection delay function, and the delay time can be preset and adjusted.
No ejection: rapid slide down→slow down of slide to press down→fast pressurization delay and pressure release→return of slide.
Ejection: rapid slide down→slow slide down to press down→slide fast pressurization delay and pressure relief→slider return→ejection cylinder ejection→ejection cylinder retraction.
The tonnage of the stretching hydraulic machine can be customized from dozens of tons to hundreds of tons and thousands of tons of pressure. Before the tonnage selection of the hydraulic machine, it is necessary to calculate the tonnage of the product demand in detail. If it is large, it will cost a lot of machine costs. If it is small, it will be stretched out. The pressure of the product is not in place, so the choice of tonnage is very important. If you have experience in making this product before or have done similar products, you can directly order the machine.

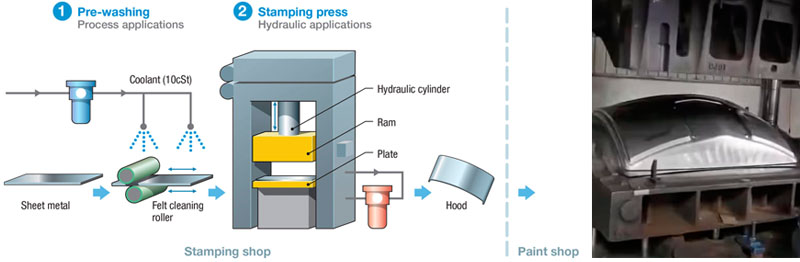

Automotive deep drawing hydraulic press machines are one of the most commonly used pieces of equipment in automotive manufacturing. In an assembly plant, stamping presses transform sheet metals into complicated part geometries such as hoods, fenders, or door panels. Stamping presses are usually characterized by both Hydraulic and Process filter applications, impacting the reliability of the press, and the quality of the stamped part/surface finish, respectively.
The deep drawing hydraulic press can add some optional devices according to product requirements: mobile workbench, servo control system, industrial refrigerator, pressure sensor, displacement sensor, grating protection, etc.
Deep drawing hydraulic press conditions of use:
Working environment temperature: -20---45℃
Humidity: ≤90%
Cooling water temperature: ≤30℃
Power supply: three-phase four-wire
Hydraulic oil: 46# anti-wear hydraulic oil
