    Frame Deep Drawing Hydraulic Press

    Introduction：
    H Frame Deep Drawing Hydraulic Press
    Fuselage type variable is less than 1/5000
    Greatly reduce the mold cost.
    Application to stainless steel utensils and other automobile draw components.

    GET A QUOTE

    H Frame Deep Drawing Hydraulic Press DKFS

    Our H frame deep drawing hydraulic press adopts the integral steel plate welded frame type frame, which has good overall rigidity and high compressive strength. The fuselage type variable is less than 1/5000, which is extremely low for large part forming and can greatly reduce the mold cost. Ensure that the hydraulic press machine is optimized and workable with your tooling.
    Frame Deep Drawing Hydraulic Press

    Main Specification of Servo Frame Deep Drawing Hydraulic Press

    Model Units Specifications
    DKFS-
    150    		 DKFS-
    220    		 DKFS-
    220L    		 DKFS-
    275    		 DKFS-
    350    		 DKFS-
    350L    		 DKFS-
    500    		 DKFS-
    500L    		 DKFS-
    600
    Master
    cylinder    		 Capacity ton 100 160 160 200 260 260 350 350 420
    Stroke mm 560 560 560 560 560 560 600 600 700
    Down speed mm/s 220 230 230 220 190 190 230 230 210
    Press speed mm/s 21 20-40 22-40 20-40 15-30 15-30 15-30 15-30 14-28
    Return speed mm/s 180 220 220 210 165 165 170 170 190
    System pressure bar 240 240 240 240 230 230 240 240 230
    Side press cylinder Capacity ton 50 60 60 75 90 90 150 150 180
    Stroke mm 260 260 260 260 260 260 300 300 350
    Unload cylinder Capacity ton 5 5 5 5 10 10 10 10 10
    Stroke mm 200 200 200 200 220 220 250 250 300
    Open hight(slide to bolster) mm 750 900 1000 900 900 900 1000 1200 1500
    Working
    table size    		 L-R mm 600 710 900 800 900 1100 1050 1250 1400
    F-B mm 800 870 1100 900 1000 1250 1200 1500 1600
    Bolster height mm 1000 1080 1100 1100 1150 1150 1350 1350 1500
    Motor power KW 24 35 35 35 37 37 55 55 55
    Over all
    dimension    		 L-R mm 1430 1750 1900 1800 3020 3250 3310 3510 3700
    F-B mm 1880 2200 2530 2250 2200 2200 2200 2200 2300
    H mm 3120 3805 3955 3830 3980 3980 4360 4660 5150
    We are able to custom manufacture H frame hydraulic press machine in a wide range of sizes and capacities as per customer's requirement. Above basic data is only for reference.

    Application Of H Frame Deep Drawing Hydraulic Press

    Our Deep drawing Hydraulic Press is suitable for manufacturing stainless steel utensils and other automobile draw components with a high degree of finish, productivity and speed.

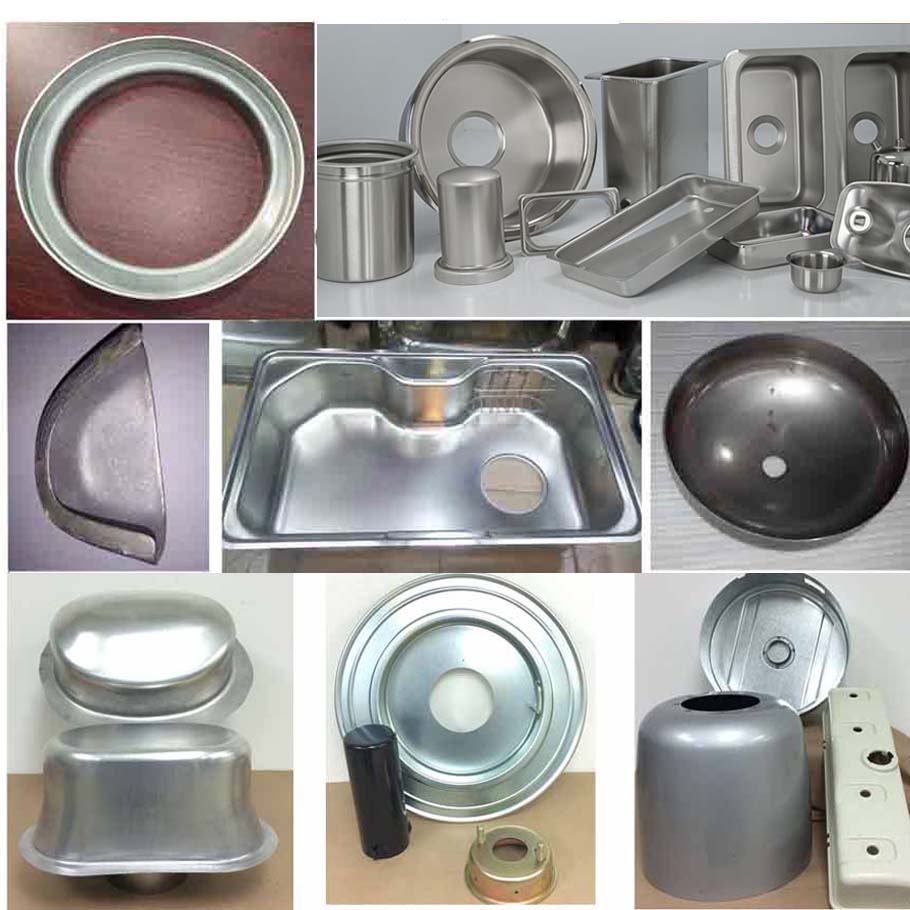

    frame deep drawing hydraulic press application
