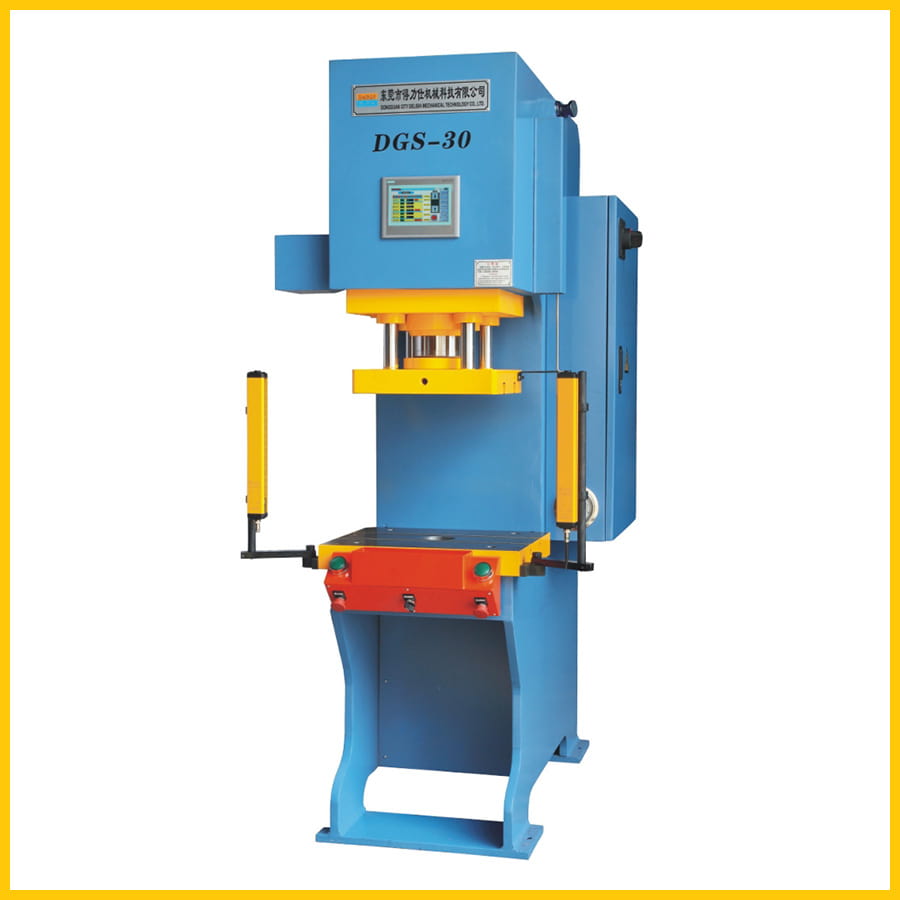

    Servo C Frame Hydraulic Press

    Introduction:
    Servo C Frame Hydraulic Press
    Repeatability of positioning accuracy of up to±0.01mm
    Link robot and automatic production line

    GET A QUOTE

    Servo C Frame Hydraulic Press / Gap Frame Press

    C frame presses, also commonly referred to as gap frame presses, are characterized by their unique frame style, resulting in the formation of a “C” around the bolster plate.
    Delishi offers C frame presses in a variety of bed sizes and tonnages with servo-electric or hydraulic actuation. Increase your production efficiency and process repeatability with servo!
    Servo C Frame Hydraulic Press


    Main Specifications Of Servo C Frame Hydraulic Press DGS

    Model Units Specifications
    DGS-50 DGS-80 DGS-100
    Main cylinder
     capacity
    Ton 50 80 100
    Max system
    pressure
    Mpa 20 21 24
    Max stroke length mm 300 300 300
    Open height(Side to bolser) mm 550 550 550
    Gap depth mm 300 325 325
    Slide approaching speed mm/s 200 200 200
    Slide pressing speed mm/s 20 18 18
    Slide returning speed mm/s 180 180 180
    Upper slide size L-R mm 440 520 520
    F-B mm 340 400 400
    Size of shank hole mm Φ50x70 Φ60x75 Φ60x75
    Fixed bolster size L-R mm 700 800 950
    F-R mm 600 650 650
    Height of bolster to ground mm 850 900 900
    Machine size L-R mm 720 1050 1150
    F-B mm 1500 1750 1850
    H mm 2300 2560 2560
    Motor power kw 7.5 11 15

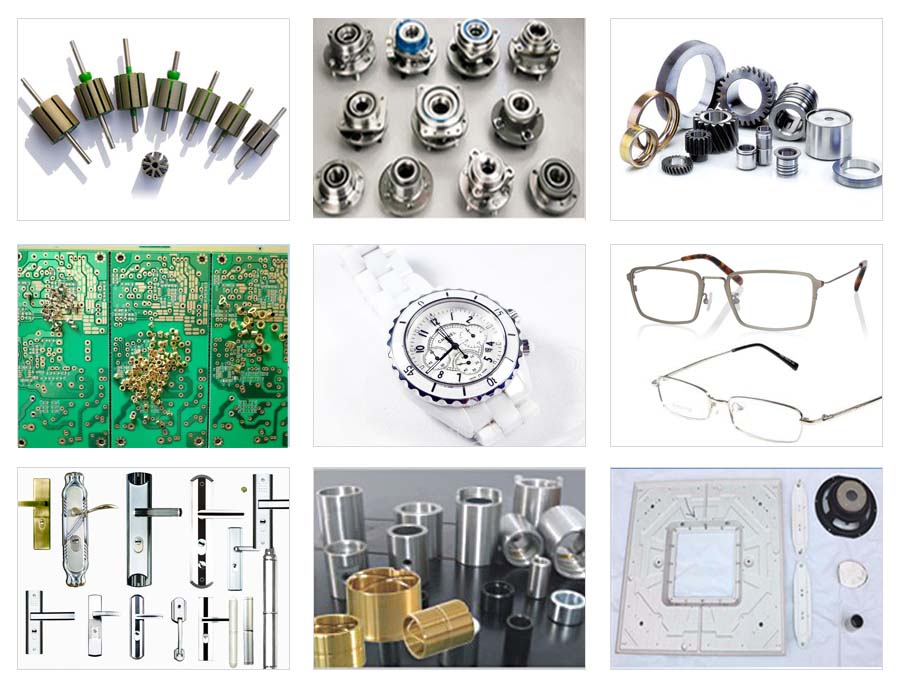

    Application Of Servo C Frame Hydraulic Press

    C frame presses are typically best suited for applications needing smaller bed sizes and lower tonnages, like assembly.C-frame presses are typically best suited for applications needing smaller bed sizes and lower tonnages, like straightening, assembling, bending, stamping, riveting, press-fit and so on.
    servo c frame hydraulic press application
