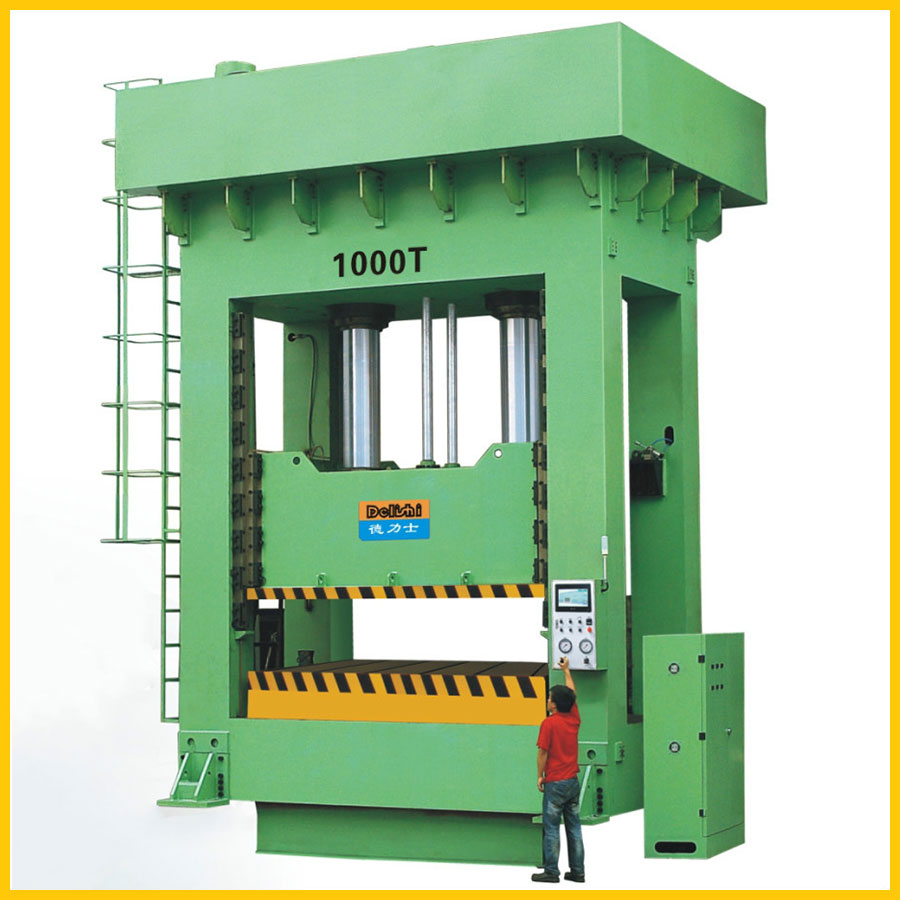

Sliding Forging Hydraulic Press
Main Specifications Of Sliding Forging Hydraulic Press DKLS
Model | Rated capacity (ton) |
Table Area (mm) | Motor Power (kw) |
Open Height (mm) |
Master Cylinder Stroke (mm) |
Descending Speed (mm/s) |
Pressing Speed (mm/s) |
Ascending Speed (mm/s) |
Cushionn Capacity (ton) |
Hydraulic cusion table size(mm) | Stroke of hydraulic cushion(mm) |
Hydraulic cusion motor power(kw) |
DKLS-100 | 100 | 1000×800 | 15 | 800 | 500 | 250 | 15~20 | 250 | 30 | 800×600 | 250 | 3.75 |
1500×1200 | 22 | 350 | 20~25 | 350 | 1200×900 | |||||||
DKLS-200 | 200 | 1000×800 | 30 | 1000 | 700 | 250 | 15~20 | 250 | 75 | 800×600 | 250 | 5.5 |
1500×1200 | 45 | 350 | 20~25 | 350 | 1200×900 | |||||||
DKLS-300 | 300 | 1200×1000 | 45 | 1200 | 800 | 250 | 15~20 | 250 | 100 | 1000×800 | 300 | 7.5 |
2000×1500 | 75 | 350 | 23~30 | 350 | 1500×1200 | |||||||
DKLS-400 | 400 | 1200×1000 | 55 | 1200 | 900 | 250 | 10~15 | 250 | 150 | 1000×800 | 300 | 7.5 |
2000×1500 | 75 | 350 | 20~25 | 350 | 1500×1200 | |||||||
DKLS-500 | 500 | 2500×1500 | 75 | 1600 | 1200 | 300 | 10~15 | 300 | 200 | 2020×1120 | 400 | 15 |
3500×2000 | 110 | 400 | 20~25 | 400 | 2920×1420 | |||||||
DKLS-600 | 600 | 2500×1500 | 110 | 1600 | 1200 | 350 | 10~15 | 350 | 200 | 2020×1120 | 400 | 15 |
3500×2000 | 400 | 23~25 | 400 | 2920×1420 | ||||||||
DKLS-800 | 800 | 2500×1500 | 150 | 2000 | 1500 | 350 | 10~15 | 350 | 300 | 2320×1420 | 500 | 30 |
4000×2500 | 400 | 20~25 | 400 | 3220×2020 | ||||||||
DKLS-1000 | 1000 | 2500×1500 | 150 | 2000 | 1500 | 350 | 12~15 | 350 | 400 | 2320×1420 | 500 | 30 |
4500×2500 | 400 | 20~25 | 400 | 3820×2020 | ||||||||
DKLS-1200 | 1200 | 2500×1500 | 150 | 2000 | 1500 | 350 | 12~15 | 350 | 500 | 2320×1420 | 500 | 30 |
4500×2500 | 400 | 20~25 | 400 | 3820×2020 | ||||||||
DKLS-1500 | 1500 | 4000×2500 | 150 | 2000 | 1500 | 350 | 12~15 | 350 | 500 | 3220×2020 | 500 | 37 |
5000×2500 | 400 | 20~25 | 400 | 4420×2020 | ||||||||
DKLS-2000 | 2000 | 4000×2500 | 180 | 2000 | 1500 | 350 | 10~15 | 350 | 600 | 3220×2020 | 500 | 37 |
5000×2500 | 400 | 20~25 | 400 | 4420×2020 |
Application Of Sliding Hydraulic Press Machine

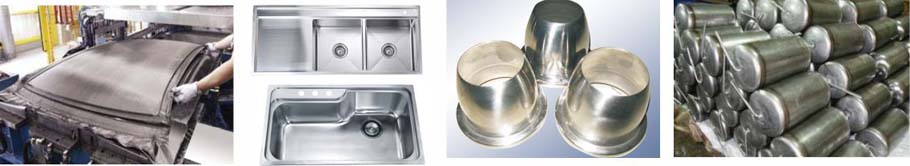

Our sliding hydraulic press machine is suitable for auto parts,stainess steel sink deep drawing products etc.
