    Four Column Hydraulic Press

    Introduction：
    Four Column Servo Hydraulic Press
    Servo control system: save power 50-70%
    Remote maintenance service can be realized

    GET A QUOTE

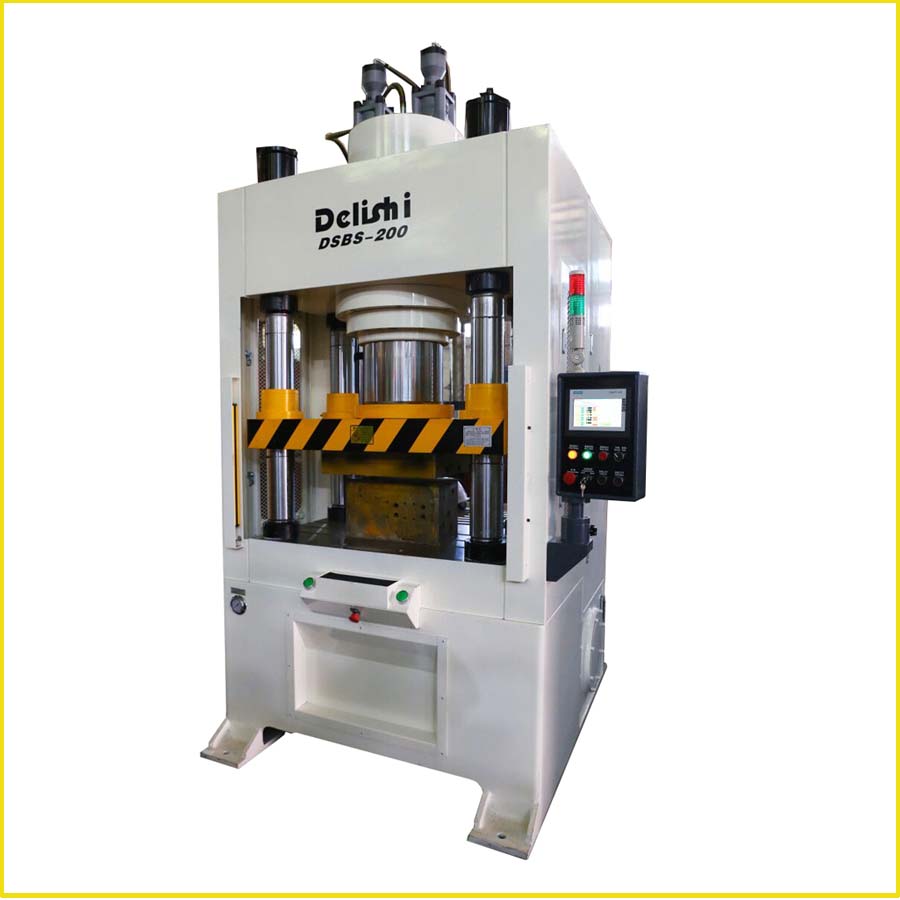

    Four Column Hydraulic Press DSBS

    Four Column Servo Hydraulic Press Machine
    Servo control system: save power 50-70%
    Remote maintenance service can be realized
    Four Column Hydraulic Press


    Main Specifications Of Four Column Servo Hydraulic Press Machine

    Model Units Specifications
    DSBS-10 DSBS-20 DSBS-50 DSBS-100 DSBS-200 DSBS-300 DSBS-500 DSBS-800 DSBS-1000 DSBS-2000
    Main cylinder
    capacity    		 ton 10 20 50 100 200 300 500 800 1000 2000
    System pressure Mpa 13 13 13 20 25 25 25 25 25 25
    Stroke mm 250 300 300 200 200 200 200 250 250 400
    Open height mm 400 450 450 450 450 500 580 700 700 900
    Working table height mm 820 820 820 850 850 900 1000 1100 1100 1350
    Working table size (L-R) mm 400 400 450 450 500 550 700 850 900 1500
    (F-B) mm 400 400 450 450 500 650 800 950 950 1500
    Master cylinder speed Down mm/s 200 200 200 200 200 240 230 190 190 200
    Press mm/s 10-25 10-20 8-15 8-15 5-10 5-10 5-10 3-10 3-10 3-10
    Return mm/s 200 200 200 200 200 220 260 150 180 180
    Motor power kw 2.2 3 4 5.5 5.5 7.5 15 18.5 45 55*2

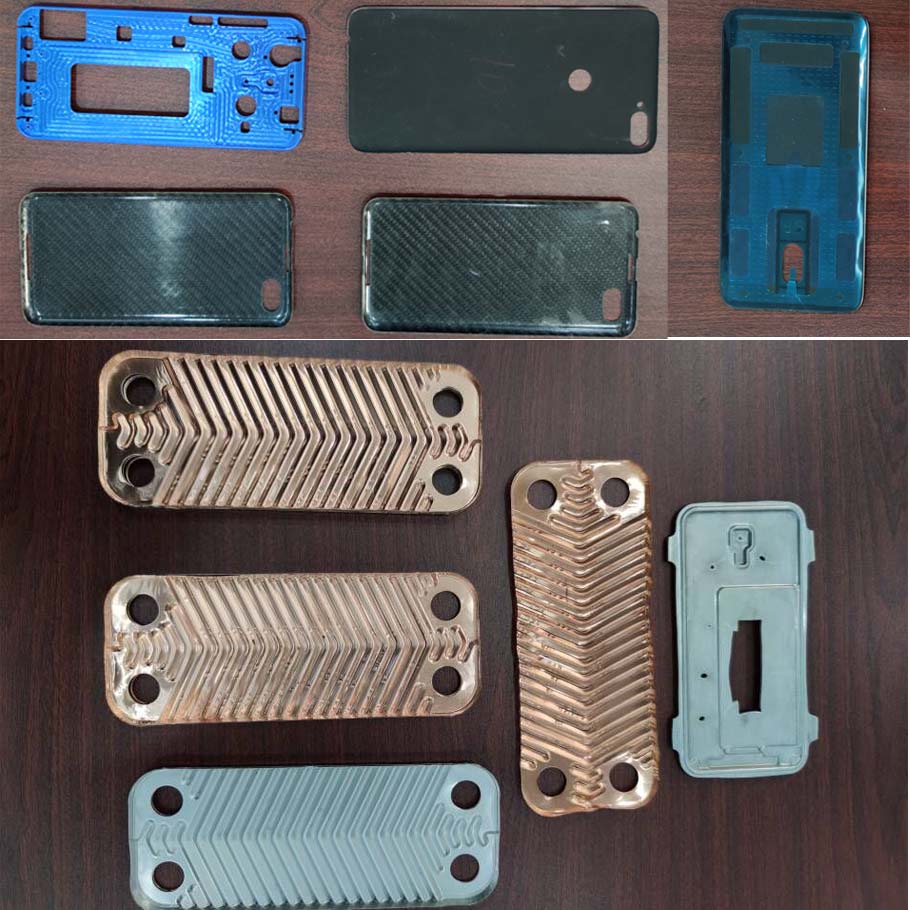

    Application in Iphone X Mobile Phone Back Cover Pressing Forming

    iphone x mobile phone back cover pressing forming
