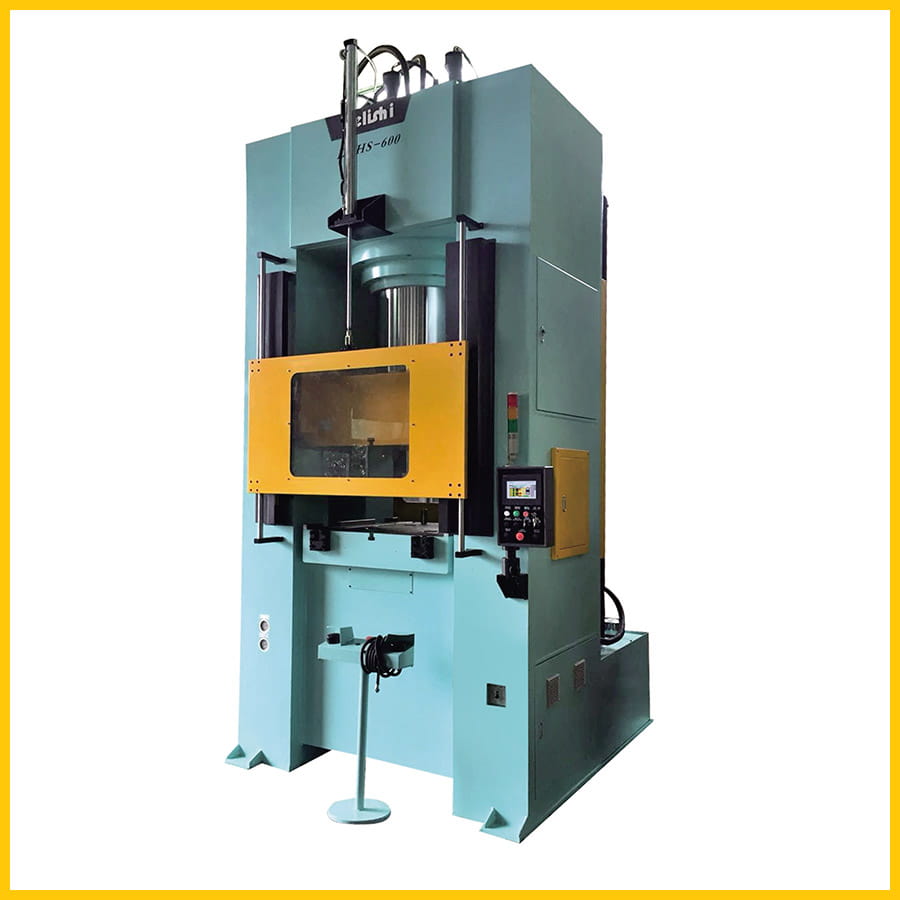

Servo Guide Hydraulic Press Servo Guide Hydraulic Press Machine DKHS
Nominal Force: 100-1500 ton
Foot Pedal/Two-handed Start Button
Siemens PLC,
Schneider Electric Components
10 INCH Touch Screen in English
Manual & Automatic
E-stop button
Safety light curtains
Lighting
T slotted bed table
Front pneumatic door
Foot Pedal/Two-handed Start Button
Siemens PLC,
Schneider Electric Components
10 INCH Touch Screen in English
Manual & Automatic
E-stop button
Safety light curtains
Lighting
T slotted bed table
Front pneumatic door
Main Specifications Of Servo Guide Hydraulic Press Machine DKHS
Model | Units | Specifications | ||||||||
DKHS-100 | DKHS-200 | DKHS-300 | DKHS-400 | DKHS-500 | DKHS-650 | DKHS-800 | DKHS-1000 | |||
Master cylinder |
Capacity | ton | 100 | 200 | 300 | 400 | 500 | 650 | 800 | 1000 |
Stroke | mm | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | |
Fast down speed | mm/s | 180 | 160 | 160 | 230 | 230 | 170 | 190 | 210 | |
Press speed | mm/s | 7-15 | 8-17 | 5-12 | 7-18 | 8-16 | 5-12 | 5-12 | 8-16 | |
Return speed | mm/s | 170 | 150 | 130 | 210 | 200 | 170 | 180 | 210 | |
System pressure | bar | 240 | 235 | 240 | 240 | 250 | 248 | 240 | 240 | |
Ejector cyinder | Capacity | ton | 15 | 30 | 30 | 40 | 40 | 50 | 50 | 60 |
Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | |
Dia of ejector bar | mm | 40 | 50 | 50 | 60 | 60 | 80 | 80 | 80 | |
Open heigh(slide to bolster) | mm | 600 | 700 | 700 | 700 | 800 | 900 | 1000 | 1100 | |
Working table size |
L-R | mm | 500 | 700 | 700 | 800 | 800 | 1000 | 1000 | 1200 |
F-B | mm | 500 | 700 | 700 | 800 | 800 | 1000 | 1100 | 1200 | |
Motor power | KW | 8.6 | 16 | 23.6 | 34.6 | 34.6 | 37 | 60 | 74 | |
Machine size | L-R | mm | 1250 | 1680 | 1680 | 2600 | 2650 | 2940 | 3000 | 3660 |
F-B | mm | 1430 | 1780 | 1780 | 2100 | 2100 | 2100 | 2300 | 2450 | |
H | mm | 2850 | 3480 | 3500 | 3700 | 4050 | 4100 | 4320 | 4560 |

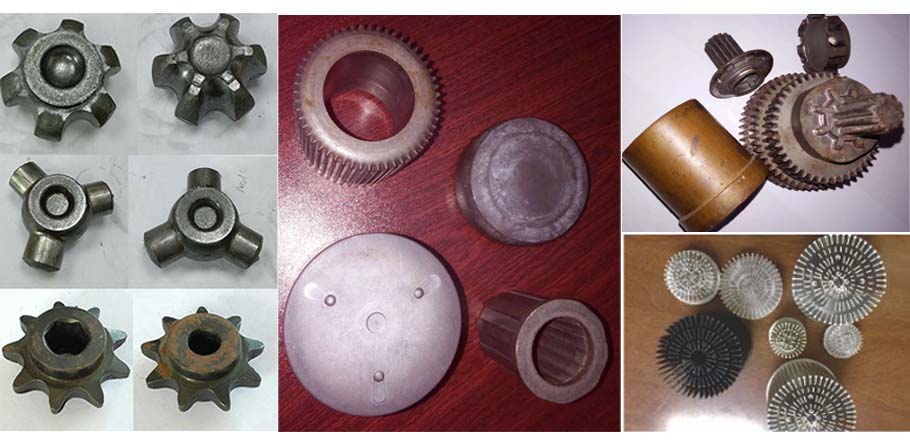

Application Of Servo Guide Hydraulic Forging Press
Our servo guide hydraulic press is suitable for led heat sink, auto spare parts such as uv joints, piston brake etc.
